Vacuum block

postby **Teejay187** » 12/12/15 @ 17:07

So I hate buying stuff that I can make myself.

Therefore I am creating a vacuum block with the needed in/outputs for the ITB setup.

Thinking about using M8 to 8mm barbed fittings the the runners, M8 to 10mm for the brake booster, and M6/M8 to 5mm for the Megasquirt MAP sensor.

postby **phillyb™** » 12/12/15 @ 17:27

fuck yeah!

postby **theAngryMarmot** » 12/12/15 @ 22:22

I used a air compressor distribution block that was $7 on Amazon.

postby **Teejay187** » 12/13/15 @ 17:48

theAngryMarmot wrote:I used a air compressor distribution block that was $7 on Amazon.

Thats a good idea. However, things like that are actually pretty expensive here.

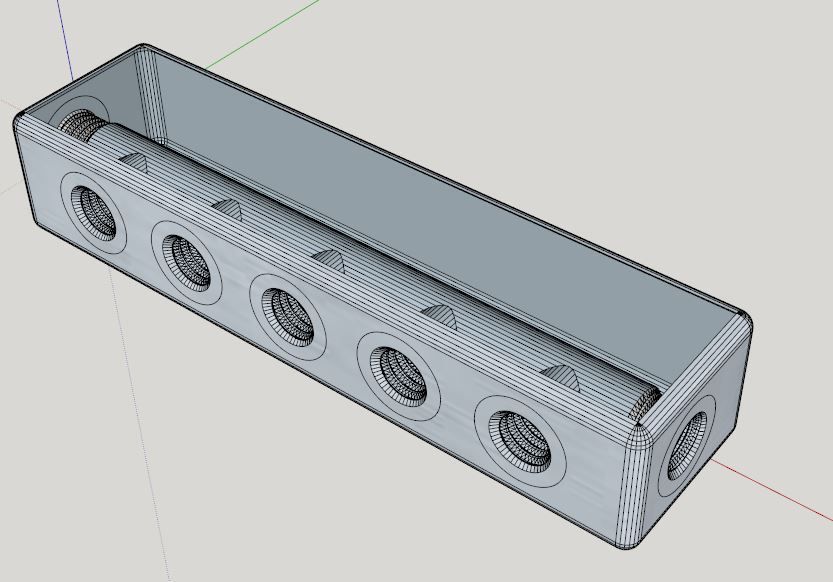

First revision:

postby **GeorgeG5** » 12/14/15 @ 09:12

you want to make the side ports bigger to accommodate for the brake booster line

postby **Teejay187** » 12/15/15 @ 08:48

These are already M8, M8 :phillyb™:

postby **GeorgeG5** » 12/17/15 @ 15:47

allright then, buddy :tits:

postby **Teejay187** » 12/27/15 @ 08:32

Well, yes, lad

postby **Teejay187** » 03/07/16 @ 06:11

Revised version. meow I only gotta do the print!

postby **phillyb™** » 03/07/16 @ 14:08

postby **Teejay187** » 03/12/16 @ 21:32

Started using new modeling software. Can get some decent shots of the parts meow lol..
